P0AA6 Hybrid Battery Voltage Isolation Fault: Is It Safe to Drive?

P0AA6 means your car's computer detected an electrical leak between the high-voltage system and the vehicle's metal body. Stop driving it and have it inspected — this is one of the few hybrid codes where continuing to drive is not a reasonable gamble, because the fault involves high-voltage current finding a path it was never designed to take.

Most hybrid battery codes tell you a pack is worn out. P0AA6 tells you something is broken in a way that changes how electricity moves through the car. Those are different problems and they deserve different responses.

What "isolation" actually means

The high-voltage system in a Prius, Camry Hybrid, RX 450h, Fusion Hybrid or Sonata Hybrid is a floating system. Unlike your 12V circuits, which use the car's chassis as a ground return, the HV pack's positive and negative sides are both electrically separated from the body by insulation, plastic housings and sealed connectors. Touch one side of a healthy HV system and nothing happens, because there's no complete circuit through the chassis.

The hybrid battery ECU constantly measures the resistance between the HV bus and chassis ground. That number should be in the hundreds of thousands of ohms — effectively infinite. When it drops, the ECU sets P0AA6, illuminates the master warning light and usually the check engine light, and often disables the hybrid system entirely.

A single isolation fault does not automatically mean the car body is live. It means the first of two barriers has failed. A second failure completes the path. That is why manufacturers program the car to shut the system down rather than let you keep driving on it.

Why P0AA6 is different from the common battery codes

| Code | What it means | Typical fix path | | --- | --- | --- | | P0A80 | Pack degraded past the ECU's threshold | Reconditioning or replacement | | P0A7F | Battery deterioration detected | Reconditioning or replacement | | P3011–P3024 | A specific block is weak | Module-level repair | | P0AA6 | Insulation between HV and chassis has failed | Find the leak first — it may not be the pack |

The first three are capacity problems. P0AA6 is an insulation problem, and the leak is not always inside the battery. That distinction matters, because replacing a pack on a car whose leak lives in the A/C compressor solves nothing and costs money.

Common causes

Coolant intrusion. Inverter coolant that finds its way into a high-voltage component creates a conductive bridge immediately. On Toyota and Lexus hybrids, a leaking inverter pump housing or a failed seal can wet HV terminals. Coolant plus copper equals corrosion, and corrosion spreads.

Electric A/C compressor breakdown. Hybrid A/C compressors run on high voltage and use a special non-conductive refrigerant oil. If ordinary PAG oil was ever put in during an A/C service, it contaminates the system and the compressor windings start leaking to ground. This is a frequent P0AA6 source and one many owners never suspect.

Moisture in the battery pack. Water from a leaking rear window seal, a flooded floorpan, or a wet cabin air path can reach bus bars. In Arizona this shows up after monsoon flooding or after someone pressure-washes an engine bay.

Heat and dust degradation. Phoenix summer underhood temperatures cook insulation over years. Separately, the battery cooling fan on Prius and Camry Hybrid packs pulls cabin air, and Valley dust clogs the intake screen. A pack that runs hot for years ages its internal insulation along with its cells.

Rodent damage. Pack rats and roof rats chew wiring, and orange HV cable jacket is not off the menu. A partially chewed cable that touches a bracket sets P0AA6 in one drive cycle.

Corroded or cracked module cases. Older NiMH modules can vent electrolyte. That residue is conductive and will track to the metal frame the modules sit in.

How the fault gets found

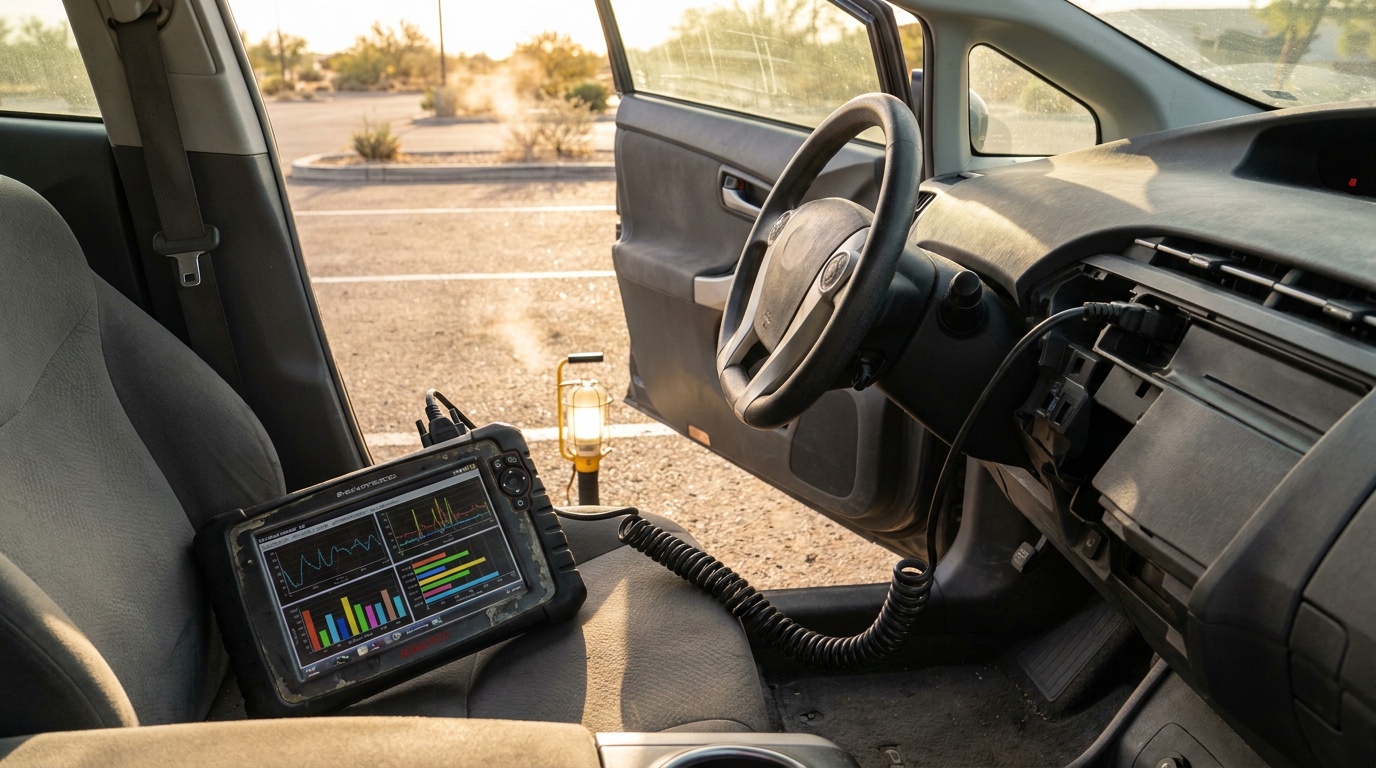

Guessing does not work here. The technician uses the scan tool's information codes to see which section of the HV circuit the ECU suspects, then tests insulation resistance with a megohmmeter, isolating one component at a time — pack, inverter, motor-generators, compressor, cables — until the leaking one shows itself. Sometimes the reading is intermittent and only appears when the component is hot or the car is in motion, which makes the freeze-frame data valuable.

A hybrid battery diagnostic that reads block voltages and internal resistance tells you a lot about pack health, but an isolation fault needs the additional insulation testing. We do that at your driveway rather than making you tow the car somewhere first.

What the repair usually costs

If the leak is inside the pack — a corroded module, a wet bus bar assembly, a single failed module tracking to the frame — the work often falls in the same territory as other pack repairs. Typical ranges for a first repair are $500 to $900 for reconditioning and $1,000 to $2,000 for replacement, and most installs take about 30 minutes once the diagnosis is settled. Full ranges are on the pricing page.

If the leak is in the A/C compressor, the inverter, or a chewed cable, that's a different repair and we'll tell you plainly what we found instead of selling you a battery.

What to do right now

Don't drive the car. Don't open the HV service disconnect yourself, don't probe orange cables, and don't let anyone who isn't equipped for high-voltage work poke around under the rear seat. If the car is already parked at home or at work anywhere from Phoenix to Surprise to Queen Creek, leave it there.

We come to the vehicle, and the diagnostic is free. Call 623-323-0737 or book a mobile diagnostic and we'll find out where the leak is before anyone talks about parts.
